COMO HACER UN AEROGENERADOR

Como hacer un aerogenerador, turbina eolica o molino de viento.

Para hacer un aerogenerador es muy importante la turbina eólica que puede variar según el tipo de motor o generador que le instalemos, pero normalmente será de unos 12v de tensión eficiente.

Después de muchas búsquedas de información por todo Internet, todos los diseños tenían cinco cosas en común:

  1. Un generador.
  2. Palas.

  3. Sistema de orientación hacia el viento (Timón).
  4. Una torre para elevar la turbina hacia dónde esté el viento.
  5. Baterías y un sistema de control eléctrico.
Organizando un poco el tema, conseguí reducir el proyecto a tan sólo cinco sistemas, que atacando poco a poco y uno por uno, no resulta del todo complicado. Decidí comenzar con el generador. Observando los proyectos de otras personas por Internet, me dí cuenta que había gente que decidió hacerse su propio generador, otros que usaban la energía residente de motores de imán permanente, y otros, simplemente se buscaban un generador. Así que decidí ponerme a buscar.
Mucha gente usaban los motores de las unidades de cinta de ordenadores antiguos. Los mejores para esto, son los Ametek de 99 voltios en continua que funcionan muy bien como generadores. Por desgracia, son muy difíciles de encontrar, aunque siempre puedes probar con otros modelos parecidos de Ametek
Existen muchas otras marcas y modelos de motores de imán permanente que no sean los Ametek, pero puede que no trabajen igual de bien, ten en cuenta que los motores de imán permanente no fueron diseñados para ser generadores. Los motores normales, cuando se usan como generadores, tienen que ser impulsados mucho más rápido que su velocidad nominal de funcionamiento para alcanzar una producción parecida a la de su funcionamiento normal. Con estos datos, podemos sacar una conclusión, lo que estamos buscando, es un motor que de mucha tensión con pocas revoluciones. Alejarse de motores con muchas revoluciones y poca tensión, porque no servirá para nada. Lo que buscamos, más o menos, es un motor que nos de unos 12 v de tensión útil con unas revoluciones muy bajas (325 rpm). Cuando lo tengáis, para hacer la prueba, conectarlo a una bombilla de 12 v y darle un fuerte giro al motor con la mano, si de verdad nos funciona, la bombilla deberá encenderse como normalmente.

He conseguido unos motores Ametek que funcionan a 30 v en Ebay por sólo 26 $. Hoy día se están abaratando debido a que mucha gente los compra para hacerse sus propios molinos de viento.
Me puse a investigar un poco más para las palas. Vi que mucha gente talla sus propias palas en madera, pero eso es demasiado complicado, teniendo en cuenta que otras personas hacían sus palas con tubos de PVC con el mismo resultado.

Seguí más o menos la guía cambiando unas cuantas cosas. Usé una tubería ABS negra que venían ya precortadas. Usé la tubería de 6 pulgadas de diámetro en vez de 4 y 24 pulgadas de largo en vez de 19 5/8. La diferencia está en que pesará un poco más, pero las revoluciones serán mayores también a recoger más viento, y ganaremos un poco de energía.

Empecé marcando y cortando el tubo longitudinalmente en cuatro piezas iguales, corté una y la usé como guía para el resto, limando los bordes y pesándolas si es necesario para evitar descompensar el aparato. Finalmente, terminé con 4 palas, tres para usarlas y una de repuesto. Para mejorar la aerodinámica se pueden limar los bordes como cuchillas para que “corte” el viento y obtenga una menor resistencia.

El siguiente paso era unir las palas al motor, para lo que usé unos pernos. Por mi taller apareció una rueda dentada que encajaba a la perfección en el eje del motor, pero no tenía ni los agujeros necesarios, ni el diámetro para hacer la unión perfecta con las palas, así que le añadí un disco de aluminio de 5 pulgadas de diámetro y ¼ pulgada de grosor que valía perfectamente para la unión de las palas. La solución fácil de esto fue unir ambas piezas y dejarlas fijas completamente.

Esta es la perforación y grabación de las piezas.

Las piezas armadas, incluyendo las palas.

La otra parte del ensamble completo.

En uno de mis viajes a la ferretería, encontré esta tapa que viene perfecta para la punta de las aspas, evitando así la resistencia del aparato al viento y repartiendo más aire aún hacia las palas.

Actualización: Más adelante, en un día de muchísimo viento, se me partieron las aspas del aerogenerador, y opté por hacerle este cambio, perdía en longitud, pero ganaba en resistencia. Para no prescindir de ninguna, debéis hacerlo así desde el principio.

Lo siguiente era el montaje del esqueleto de la turbina, para hacerlo sencillo, opté por colocar el motor en un trozo de madera de 2 X 4 pulgadas agarrado con unas abrazaderas ajustables. También, para proteger un poco el motor, lo puse dentro de un tubo de PVC que tenía su diámetro justo. Le coloqué una cola para direccionar el esqueleto hacia el viento, la mía estaba hecha de aluminio rígido y tenía las dimensiones que están en la imagen, aunque eso no es algo que deba preocuparos.

Esta es otra vista del esqueleto de la turbina de viento.

El siguiente paso fue pensar en algún tipo de mecanismo que permitiera girar libremente a la turbina según la dirección en la que viniera el viento. Después de mucho pensar, me di cuenta que con una barra de metal de 1 pulgada de diámetro y 10 de largo introducida en un tubo de acero de 1 pulgada y 1/4 de diámetro, funcionaba a la perfección. Usaría por ambos lados los tubos de acero de 1 pulgada, y de cuerpo o torre, usaría el de 1 pulgada y 1/4. Para elegir la posición del tubo de acero, miré el esqueleto y calculé el centro de gravedad, tan simple como ver el sitio de la madera (la de 33 pulgadas) dónde se queda en equilibrio. Los cables del generador, pasarán por un agujero por el centro del tubo de sujeción.

Para la base de la torre, corté una base de 2 pies de diámetro de madera contrachapada. Le hice un montaje en forma de U con tuberías de 1 pulgada que es dónde iría el otro extremo del tubo o torre de 1 pulgada y ¼ de diámetro. Como la parte superior, es libre de girar para dónde quiera también, así se le da más movilidad por si en un momento dado se atasca la de arriba. También la U es movible en forma de bisagra para facilitar la subida y bajada de la turbina de viento. Entre la U y el tubo de 1 pulgada, añadí una T con un agujero para poder sacar por ahí el cable. Eso se muestra en una foto de abajo. También incluiré unos agujeros en la madera contrachapada para poner unos anclajes para el suelo.

Esta foto muestra la cabeza y la base juntos. Ahora te puedes hacer a la idea de como irá quedando, imagínate una tubería de 10 pies entre los extremos.

Después pinté todas las piezas de madera con una pintura protectora blanca. En esta foto se ve también un añadido en la cola, es un pedazo de plomo para contrapesar.

Aquí está todo el conjunto de la cabeza.
Después de tener listo toda la parte de mecánica, decidí ponerme con la electrónica. El sistema estaría compuesto por un sistema de una o varias baterías para almacenar la energía acumulada por el aerogenerador, un diodo de bloqueo para evitar el desperdicio de energía desde las baterías, una carga secundaria para tirar la energía que sobre cuando las baterías estén totalmente cargadas y un controlador de carga para manejarlo todo.
Decidí buscar por Google un poco de información de controladores de carga de aerogeneradores
Como en esa web explica muy bien la creación de dicho circuito, yo sólo tocaré aspectos generales del mismo.
El principio básico del funcionamiento del controlador es controlar si la batería está cargada para enviar corriente desde la turbina hacia ellas o desviarla hacia una carga para no dañar las baterías. En el link está todo muy bien explicado.

Esta es una foto del controlador construido, está todo en un tablón de madera contrachapada para poder hacer pruebas y arreglar errores. Más tarde lo ensamblaré todo en una caja.
Se puede ver perfectamente la placa de circuito impreso dónde encontramos la electrónica compleja. Un soporte plateado con dos interruptores que permiten alternar entre las baterías y la carga.
El disipador negro de abajo a la izquierda tiene dos diodos de bloqueo de 40 A. Uso sólo uno de momento, pero podría usar el otro para otro aerogenerador o para añadir un panel solar, quién sabe. La doble hilera de rectángulos color dorado de la parte superior es la carga, compuesto por resistencias de alta potencia, a intervalos de 2 Ohm. Sirve para volcar la energía cuando las baterías están cargadas o para hacer pruebas con la turbina. El exceso de potencia de la turbina puede ser aprovechado para un calentador o incluir una segunda batería. Debajo a la izquierda de las resistencias, nos encontramos un fusible, el principal, junto con un relé cuadrado de color gris de 40 A, está sacado de un coche. Es el encargado de enviar la energía o a las baterías o a la carga. Por todo el lado derecho, se pueden ver, en color negro, todas las conexiones en un bloque de terminales.
Operando, la turbina de viento, está conectada a la controladora. Después pasa de la controladora a la batería. Todas las cargas son tomadas de las baterías. Si el voltaje de la batería baja de 11,9 v, el controlador cambia la turbina hacia las baterías. Si el voltaje de la batería se eleva a 14 v, el controlador cambia la turbina hacia la carga. Si te fijas, verás potenciometros para ajustar los voltajes de ambos estados. Elegí 11,9 v para cuando está descargada y 14 v para cuando está cargada debido al asesoramiento encontrado en diferentes sitios web sobre la carga óptima de baterías de plomo-ácido. Cuando el voltaje de la batería está entre 11,9 v y 14 v, el sistema se puede cambiar manualmente a cualquiera de los dos estados. Normalmente, el sistema es automático. Cuando se está utilizando la carga, el LED verde se enciende, cuando se está cargando la batería, es el amarillo el que se enciende. Esto permite tener un mínimo de información del sistema, también uso el polímetro tanto para medir el voltaje de la batería como el de la salida de la turbina. Más adelante añadiré unos medidores de tensión y lo meteré todo en una caja un poco más decente.
Utilicé una fuente de alimentación de voltaje variable para realizar las pruebas de los diferentes estados de la batería (el de 11,9 v y el de 14 v) y así poder ajustar los potenciómetros a mi gusto.
Actualización: Al final cambié el voltaje de derivación a la carga de 14 a 14,8 v, parece que va mejor para la carga de este tipo de baterías.
Actualización: Descubrí que existe un orden para conectar las cosas al controlador y no dañar nada. Una vez conecté la turbina y el panel solar antes que las baterías, y debido a las oscilaciones de tensión, el relé y los voltajes empezaron a hacer cosas raras debido a que no estaba la batería para estabilizar, también se puede dañar el circuito. Lo que se debe hacer siempre es conectar primero las baterías y luego el aerogenerador o el panel solar. Para desconectar es igual, primero se desconectan los sistemas (panel y turbina) y luego las baterías.

Cuando llegué a mi finca, lo primero que hice fue empezar con el refuerzo de la torre, coloqué la cabeza de la turbina en la tubería de 10 pies de largo y 1 pulgada ¼ de diámetro y la base en el final del mismo. A partir de aquí fue todo muy rápido. Utilicé cuerdas de nylon para sujetar el palo de 10 pies al suelo con estacas de madera y unos tensores en los extremos. Gracias a la bisagra de la base, pude bajar y subir la torre fácilmente. Cuando esté todo andando, las cuerdas de nylon y las estacas de madera se sustituyen por cables de acero y estacas de metal.

En esta foto se muestra de cerca la forma en la que amarré las cuerdas a la tubería de metal. Sencillo a la vez que eficaz.

Esta otra foto muestra la base de la torre, apoyada en el suelo, y con la salida del cable de la turbina por la sección en forma de T. El cable utilizado es un cable normal de instalaciones eléctricas, simplemente cortar y conectar turbina con controlador.

Esta foto muestra la cabeza de la turbina instalada en la parte superior de la torre. Engrasé todo el tubo de la parte inferior de la cabeza y se deslizo solo hasta el tope final.
Solo queda esperar a que sople el viento y empiece a producir.

La turbina funcionando a las mil maravillas, incluso con viento flojo.

Aquí todo el tinglado de controlador, batería y la electrónica de los cableados. Se puede ver también un inversor de 120 v conectado a la batería y a un polímetro para realizar el seguimiento de la tensión de la batería y de la salida de la turbina. Mi afeitadora eléctrica y el cargador de la batería están conectados al inversor funcionando a 120 v. Más tarde lancé también un cable a mi campamento.

En esta foto, toda la electrónica. El polímetro muestra una producción de 13,32 v, la carga la proporciona la afeitadora y las baterías a través del inversor.

Aquí el polímetro muestra una producción de 13,49 v. La tensión de la turbina sube un poco a la vez que la fuerza del viento, es debido a tener una carga. Cuando gira muy rápidamente y la tensión de la batería es excedida, el diodo se encarga del bloqueo. Cuando se supera el límite, de repente le entra la carga (resistencias) a la turbina. Una de las precauciones a tener en cuenta es tener cuidado con los cambios en la dirección del viento cuando se está trabajando con los cables, ya que podrías partirlos.

Me dí cuenta que toda la configuración del controlador era demasiado peligroso. Ordené un poco los cables y puse toda la electrónica encima de un pedazo de madera en la parte superior de una caja de plástico. Después coloqué un largo cable desde el inversor hasta mi campamento, así era más seguro.

Otra vista más de la configuración.

Aquí mi portátil funcionando gracias a la turbina.
¿Cuanto costó todo?, aquí tenéis una tabla.
¿El qué?¿De dónde?¿Cuanto?
Motor / generador.Ebay.$26,00 = 18,27€
Varios de tubería.Ferretería.$41,49 = 29,16€
Tubería para las palas.Ferretería.$12,84 = 9,02€
Varios equipos.Ferretería.$8,00 = 5,6€
Conductos.Ferretería.$19,95 = 14,02€
Madera y aluminio.Montón de chatarra $0,00
Cable de alimentación Ya lo tenía.$0,00
Cuerda y tensores.Ferretería.$18,47 = 12,98€
Piezas electrónicas Ya lo tenía. $0,00
Relé Almacén de coches. $13,87 = 9,74€
Batería.Cogida de mi UPS.$0,00
Inversor Ya lo tenía. $0,00
Pintura Ya lo tenía. $0,00
Total$140,62 = 98,84€
No está mal. Teniendo en cuenta que las turbinas profesionales comparables a esta valen entre 750 y 1000 $.
Modificaciones y mejoras que me gustaría hacerle en el futuro:
- Montar los componentes electrónicos en una caja estanca.
- Añadir medidores para la tensión de la batería y la de la turbina.
- Añadir un tacómetro para saber lo rápido que está girando.
- Añadir más baterías.
- Añadir otra turbina de viento u otro panel solar para producir más energía.
- Obtener un inversor de mayor voltaje.
- Sistema de frenado de emergencia para cuando hayan vientos fuertes.
- Base de hormigón para la torre.
- Una torre más alta con cables y estacas de acero.

Terminé la reconstrucción del controlador. Ahora está en un recinto semiestanco y le he añadido un medidor de tensión. Consta con entradas para varias fuentes y diferentes salidas de cargas externas.

Estas son las entradas del controlador, dos entradas para paneles solares y una para el molino de viento. Esta configuración puede variar a cada gusto.

Esta foto muestra las salidas del controlador. Hay conexiones para las baterías, para la carga y para 3 salidas de 12 v.

Este es el interior del controlador, básicamente transferí todo lo que había en el tablero de madera hacia aquí. He añadido un medidor de voltaje y un fusible por cada salida.

Este es el esquema del nuevo controlador, es casi igual que el antiguo a excepción de los dos cambios que dije anteriormente.

Este diagrama de bloque da una visión general de lo que es el montaje.


La versión original se puede ver en:


http://www.mdpub.com/Wind_Turbine/


que tiene el siguiente contenido:












Several years ago I bought some remote property in Arizona. I am an astronomer and wanted a place to practice my hobby far away from the sky-wrecking light pollution found near cities of any real size. I found a great piece of property. The problem is, it's so remote that there is no electric service available. That's not really a problem. No electricity equals no light pollution. However, it would be nice to have at least a little electricity, since so much of life in the 21st century is dependent on it.
One thing I noticed right away about my property is that most of the time, the wind is blowing. Almost from the moment I bought it, I had the idea of being energy independent by putting up a wind turbine and making some electricity, and later adding some solar panels and a wood gasifier. This is the story of how I did it. Not with an expensive, store-bought turbine, but with a home-built one that cost hardly anything. If you have some fabricating skills and some electronic know-how, you can build one too.


Let me state up front that I probably won't be able to help you out much if you decide to build your own wind turbine. This web site has become insanely popular, often taxing the bandwidth limits of the server. I get dozens of requests for help each day. I simply don't have time to answer the majority of them. Most of the questions and requests I get are the same ones over and over again. I have crated a FAQ to handle these repetitive questions. Please read it before emailing me. Simple questions, not covered by the FAQ, which only require a quick and simple answer may get replies if time permits. However, there is no way I can help you out with complex issues, teach you electronics theory, help you locate parts, build a charge controller for you, or custom design a system for you. There just aren't enough hours in the day. Sorry.

Since no one seems to be reading the FAQ, I will answer the No. 1 question I get many, many times a day right here up front. Why didn't I just use an automotive alternator on my wind turbine? Automotive alternators need to spin at very high speed to produce useful amounts of power. Most wind turbines don't spin fast enough for them to work.

Update: Here is a video of the wind turbine in operation.


Update: Here is a video of me assembling and setting up the
wind turbine on my remote off-grid property.

I started the process of designing my wind turbine by Googling for information on home-built wind turbines. There are a lot of them out there in an amazing variety of designs and complexities. All of them had five things in common though:

  1. A generator
  2. Blades
  3. A mounting that keeps it turned into the wind
  4. A tower to get it up into the wind
  5. Batteries and an electronic control system
I reduced the project to just five little systems. If attacked one at a time, the project didn't seem too terribly difficult. I decided to start with the generator. My online research showed that a lot of people were building their own generators. That seemed a bit too complicated, at least for a first effort. Others were using surplus permanent magnet DC motors as generators in their projects. This looked like a simpler way to go. So I began looking into what motors were best for the job.
A lot of people seemed to like to use old computer tape drive motors (surplus relics from the days when computers had big reel to reel tape drives). The best apparently are a couple of models of motor made by Ametek. The best motor made by Ametek is a 99 volt DC motor that works great as a generator. Unfortunately, they are almost impossible to locate these days. There are a lot of other Ametek motors around though. A couple of their other models make decent generators and can still be found on places like Ebay . This web site talks about the virtues and vices of various Ametek motors when used as generators.
http://www.tlgwindpower.com/ametek.htm
There are probably lots of other brands and models of permanent magnet DC motors available that will work well as generators. Permanent magnet DC motors work as generators, but they weren't designed to be generators. So they aren't great generators. Some types of motor are a lot worse than others. When used as generators, motors generally have to be driven far faster than their rated speed to produce anything near their rated voltage. So what you are looking for is a motor that is rated for high DC voltage, low rpms and high current. Steer away from low voltage and/or high rpm motors. You want a motor that will put out over 12 Volts at a fairly low rpm, and a useful level of current. So a motor rated for say 325 rpm at 30 Volts when used as a generator, could be expected to produce 12+ volts at some reasonably low rpm. On the other hand, a motor rated at 7200 rpm at 24 volts probably won't produce 12+ volts as a generator until it is spinning many thousands of rpm, which is way too fast for a wind turbine. So shop for motors accordingly.
They don't go that cheap these days. People are catching on to the fact that they make great wind generators. Other brands will work, so don't fret about the price Ameteks are going for. Shop wisely. Anyway, The motor I got was in good shape and worked great. Even just giving the shaft a quick turn with my fingers would light a 12 volt bulb quite brightly. I gave it a real test by chucking it up in my drill press and connecting it to a dummy load. It works great as a generator, putting out easily a couple hundred Watts with this setup. I knew then that if I could make a decent set of blades to drive it, it would produce plenty of power.
So Blades and a hub to connect them to were the next order of business. More online research ensued. A lot of people made their own blades by carving them out of wood. That looked like an outrageous amount of work to me. I found that other people were making blades by cutting sections out of PVC pipe and shaping them into airfoils. That looked a lot more promising to me. This web site tells you how to make a set of blades for a small wind turbine using PVC pipe.

http://www.yourgreendream.com/diy_pvc_blades.php
Making wind turbine blades from PVC pipe I followed their general recipe. I did things a little differently though. I used black ABS pipe since my local homecenter store just happened to have pre-cut lengths of it. I used 6 inch pipe instead of 4 inch and 24 inches long instead of 19 5/8. I started by quartering a 24 inch long piece of pipe around its circumference and cutting it lengthwise into four pieces. Then I cut out one blade, and used it as a template for cutting out the others. That left me with 4 blades (3 plus one spare).

Finished wind turbine blades made from PVC pipe I then did a little extra smoothing and shaping using my belt sander and palm sander on the cut edges to try to make them into better airfoils. I don't know if it's really much of an improvement, but it didn't seem to hurt, and the blades look really good (if I do say so myself).

A pully and a disk used to make a hub Now I needed a hub to bolt the blades to and attach to the motor. Rummaging around in my workshop, I found a toothed pulley that fit on the motor shaft, but was a little too small in diameter to bolt the blades onto. I also found a scrap disk of Aluminum 5 inches in diameter and ¼ inch thick that I could bolt the blades onto, but wouldn't attach to the motor shaft. The simple solution of course was to bolt these two pieces together to make the hub.

The pully and a disk drilled and tapped Much drilling, tapping and bolting later, I had a hub.

The hub with the blades attached Here it is assembled and with the blades attached (after drilling mounting holes in them of course).

another view of the hub with the blades attached Here is another view of the hub with blades attached.

Hub and PVC vent cap as spinner On a trip to the homecenter store for some PVC doo-dad or other for another project, I found these dome shaped vent caps.

Vent cap in place as spinner I immediately thought of adding a spinner to the hub. Wow, with that on there, it really looks like a professionally made unit. I'd never be able to convince anyone I built it myself out of junk from my workshop and plumbing parts. They'd all look at me when I said I built it myself and go "Yeah, right." Then I found a web site that claimed such spinners disrupt the airflow and hurt the efficiency of the blades. I'm not sure I believe the reasoning behind the claim, but I left the spinner off, at least initially.

Mounting it on a 2 X 4 Next I needed a mounting for the turbine. Keeping it simple, I opted to just strap the motor to a piece of 2 X 4 wood. The correct length of the wood was computed by the highly scientific method of picking the best looking piece of scrap 2 X 4 off my scrap wood pile and going with however long it was. I also cut a piece of 4 inch diameter PVC pipe to make a shield to go over the motor and protect it from the weather. For a tail to keep it turned into the wind, I again just used a piece of heavy sheet Aluminum I happened to have laying around. I was worried that it wouldn't be a big enough tail, but it seems to work just fine. The turbine snaps right around into the wind every time it changes direction. For those of you always clamoring for me to provide plans, blueprints, schematics, etc., for my projects, I have added a few dimensions to the picture. I doubt any of these measurements is critical though.

The completed head of the wind turbine Here is another view of the completed head of the unit with the motor and tail attached.

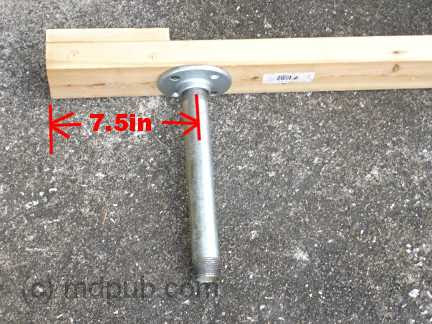

Attaching a floor flange and 10 inch nipple to the bottom of the head Next I had to begin thinking about some sort of tower and some sort of bearing that would allow the head to freely turn into the wind. I spent a lot of time in my local homecenter stores (Lowes and Home Depot) brainstorming. Finally, I came up with a solution that seems to work well. While brainstorming, I noticed that 1 inch diameter iron pipe is a good slip-fit inside 1 1/4 inch diameter steel EMT electrical conduit. I could use a long piece of 1 1/4 inch conduit as my tower and 1 inch pipe fittings at either end. For the head unit I attached a 1 inch iron floor flange centered 7 1/2 inches back from the generator end of the 2X4, and screwed a 10 inch long iron pipe nipple into it. The nipple would slip into the top of the piece of conduit I'd use as a tower and form a nice bearing. Wires from the generator would pass through a hole drilled in the 2X4 down the center of the pipe/conduit unit and exit at the base of the tower. Brilliant! (if I do say so myself)

The tower base For the tower base, I started by cutting a 2 foot diameter disk out of plywood. I made a U shaped assembly out of 1 inch pipe fittings. In the middle of that assembly I put a 1 1/4 inch Tee. The Tee is free to turn around the 1 inch pipe and forms a hinge that allows me to raise and lower the tower. I then added a close nipple, a 1 1/4 to 1 reducing fitting, and a 12 inch nipple. Later I added a 1 inch Tee between the reducer and the 12 inch nipple so there would be a place for the wires to exit the pipe. This is shown in a photo further down the page. I also later drilled holes in the wooden disk to allow me to use steel stakes to lock it in place on the ground.

The head and base together This photo shows the head and base together. You can begin to see how it will go together. Imagine a 10 foot long piece of steel conduit connecting the two pieces. Since I was building this thing in Florida, but was going to use it in Arizona, I decided to hold off on purchasing the 10 foot piece of conduit until I got to Arizona. That meant the wind turbine would never be fully assembled and not get a proper test until I was ready to put it up in the field. That was a little scary because I wouldn't know if the thing actually worked until I tried it in Arizona.

Bottom view of painted head unit showing counter-weight Next, I painted all the wooden parts with a couple of coats of white latex paint I had leftover from another project. I wanted to protect the wood from the weather. This photo also shows the lead counterweight I added to the left side of the 2X4 under the tail to balance the head.

The finished head unit with blades attached This photo shows the finished head unit with the blades attached. Is that a thing of beauty or what? It almost looks like I know what I'm doing.
I never got a chance to properly test the unit before heading to Arizona. One windy day though, I did take the head outside and hold it high up in the air above my head into the wind just to see if the blades would spin it as well as I had hoped. Spin it they did. In a matter of a few seconds it spun up to a truly scary speed (no load on the generator), and I found myself holding onto a giant, spinning, whirligig of death, with no idea how to put it down without getting myself chopped to bits. Fortunately, I did eventually manage to turn it out of the wind and slow it down to a non-lethal speed. I won't make that mistake again.

Now That I had all the mechanical parts sorted out, it was time to turn toward the electronic end of the project. A wind power system consists of the wind turbine, one or more batteries to store power produced by the turbine, a blocking diode to prevent power from the batteries being wasted spinning the motor/generator, a secondary load to dump power from the turbine into when the batteries are fully charged, and a charge controller to run everything.
There are lots of controllers for solar and wind power systems. Anyplace that sells alternative energy stuff will have them. There are also always lots of them for sale on Ebay . I decided to try building my own though. So it was back to Googling for information on wind turbine charge controllers. I found a lot of information, including some complete schematics, which was quite nice, and made building my own unit very easy. I based my unit on the schematic of the one found on this web site:
http://www.fieldlines.com/story/2004/9/20/0406/27488
That web site goes into a lot of detail about the controller, so I'm only going to talk about it in fairly general terms here. Again, while I followed their general recipe, I did do some things differently. Being an avid electronics tinkerer from an early age, I have a huge stock of electronic components already on hand, so I had to buy very little to complete the controller. I substituted different components for some parts and reworked the circuit a little just so I could use parts I already had on hand. That way I had to buy almost nothing to build the controller. The only part I had to buy was the relay.
Whether you build your own, or buy one, you will need some sort of controller for your wind turbine. The general principal behind the controller is that it monitors the voltage of the battery(s) in your system and either sends power from the turbine into the batteries to recharge them, or dumps the power from the turbine into a secondary load if the batteries are fully charged (to prevent over-charging and destroying the batteries). The schematic and write-up on the above web page does a good job of explaining it.
The charge controller for the wind turbine This is a picture of the controller I built. Click on it to see a larger picture. I just bolted everything to a piece of plywood for testing purposes. Eventually I will mount it in a weather-proof enclosure.
The little perf-board in the lower center with the ICs and other bits on it is the actual controller circuit. The silver bracket below it holds two buttons that allow me to manually toggle the unit between charging batteries and dumping power to a secondary load. The big, black heat sink on the lower left has two 40 Amp blocking diodes bolted into it. I am only using one right now, but I could easily add a second wind turbine or even a photovoltaic solar panel to the system using the second one. The double row of gold rectangles across the top is a dummy load made up of high-Wattage resistors. It has taps at 2 Ohm intervals. I use it as a secondary load to dump power from the turbine into when the battery is fully charged. I also use it for testing purposes to load test the turbine. Eventually excess power from the turbine will be dumped to something more useful like a water heater or a second battery bank. Below and to the left of the dummy load is the main fuse for the wind turbine. The small gray cube is a 40 Amp SPDT automotive relay (the only part I had to purchase) which sends the turbine power either to the batteries or to the dummy load. Along the right side is the terminal block which allows me to connect everything together.

In operation, the wind turbine is connected to the controller. Lines then run from the controller to the battery. All loads are taken directly from the battery. If the battery voltage drops below 11.9 volts, the controller switches the turbine power to charging the battery. If the battery voltage rises to 14 volts, the controller switches to dumping the turbine power into the dummy load. There are trimpots to adjust the voltage levels at which the controller toggles back and forth between the two states. I chose 11.9V for the discharge point and 14V for the fully charged point based on advice from lots of different web sites on the subject of properly charging lead acid batteries. The sites all recommended slightly different voltages. I sort of averaged them and came up with my numbers. When the battery voltage is between 11.9V and 14V, the system can be switched between either charging or dumping. A pair of push buttons allow me to switch between states anytime, for testing purposes. Normally the system runs automatically. When charging the battery, the yellow LED is lit. When the battery is charged and power is being dumped to the the dummy load, the green LED is lit. This gives me some minimal feedback on what is going on with the system. I also use my multimeter to measure both battery voltage, and turbine output voltage. I will probably eventually add either panel meters, or automotive-style voltage and charge/discharge meters to the system. I'll do that once I have it in some sort of enclosure.
I used my variable voltage bench power supply to simulate a battery in various states of charge and discharge to test and tune the controller. I could set the voltage of the power supply to 11.9V and set the trimpot for the low voltage trip point. Then I could crank the voltage up to 14V and set the trimpot for the high voltage trimpot. I had to get it set before I took it into the field because I'd have no way to tune it up out there.
Update: I am now using 14.8V for the full charge point after further researching the proper charging of lead-acid batteries. I have also switched to sealed lead-acid batteries because I got a bunch of them free from my brother. I am contemplating switching to deep-cycle batteries when the ones I have now begin to fail.
Update: I have found out the hard way that it is important with this controller design to connect the battery first, then connect the wind turbine and/or solar panels. If you connect the wind turbine first, the wild voltage swings coming from the turbine won't be smoothed out by the load of the battery, the controller will behave erratically, the relay will click away wildly, and voltage spikes could destroy the ICs. So always connect to the battery(s) first, then connect the wind turbine. Also, make sure you disconnect the wind turbine first when taking the system apart. Disconnect the battery(s) last.
Update: Finally, by very popular demand, I have a schematic of my charge controller. Click on it for the full size schematic. It only varies a little bit from the one at the above link. I substituted a few parts I had on hand for ones in the original design. That way I only had to buy a few things to build the controller. You could do the same. It is not critical to exactly duplicate this design. I used a different op-amp chip and a different MOSFET than the original design. Most of the resistor values are not critical. If you have the knowledge to do so, feel free to substitute. Also, feel free to experiment. I'd be interested in hearing from anyone who feels they have improved on the design in any way.

At last, all parts of the project were complete. It was all done only a week before my vacation arrived. That was cutting it close. I disassembled the turbine and carefully packed the parts and the tools I'd need to assemble it for their trip across the country. Then I once again I drove out to my remote property in Arizona for a week of off-grid relaxation, but this time with hopes of having some actual electricity on the site.
The first order of business was setting up and bracing the tower. After arriving at my property and unloading my van, I drove to the nearest Home Depot (about 60 miles one way) and bought the 10 foot long piece of 1 1/4 inch conduit I needed for the tower. Once I had it, assembly went quickly. I used nylon rope to anchor the pole to four big wooden stakes driven in the ground. Turnbuckles on the lower ends of each guy-line allowed my to plumb up the tower. By releasing the line from either stake in line with the hinge at the base, I could raise and lower the tower easily. Eventually the nylon line and wooden stakes will be replaced with steel stakes and steel cables. For testing though, this arrangement worked fine.

Closeup of how the guy-lines attach to the tower This photo shows a closeup of how the guy-lines attach near the top of the tower. I used chain-link fence brackets as tie points for my guy-lines. The fence brackets don't quite clamp down tightly on the conduit which is smaller in diameter than the fence posts they are normally used with. So there is a steel hose clamp at either end of the stack of brackets to keep them in place.

The tower base with wire exiting This photo shows the base of the tower, staked to the ground, and with the wire from the wind turbine exiting from the Tee below the conduit tower. I used an old orange extension cord with a broken plug to connect between the turbine and the controller. I simply cut both ends off and put on spade lugs. Threading the wire through the tower turned out to be easy. It was a cold morning and the cord was very stiff. I was able to just push it through the length of the conduit tower. on a warmer day I probably would have had to use a fishtape or string line to pull the cord through the conduit. I got lucky.

The head installed on top of the tower This photo shows the turbine head installed on top of the tower. I greased up the pipe on the bottom of the head and slid it into the top of the conduit. It made a great bearing, just as I'd planned. Sometimes I even amaze myself.
Too bad there was nobody around to get an Iwo Jima Flag Raising type picture of me raising the tower up with the head installed.
Now I'm just waiting for the wind to blow. Wouldn't you know it, it was dead calm that morning. It was the first calm day I had ever seen out there. The wind had always been blowing every other time I had been there. Well, nothing to do but wait.

The wind turbine spinning in the wind Finally! The wind was up and the turbine was spinning. The winds were actually unusually light the whole time I was on my property this time. The wind turbine still made good amounts of power though, even with winds that at best made it to only a little over 20 mph at times.

This photo shows the controller, battery and associated electronics all wired up. I have a 120V inverter connected to the battery and a multimeter to keep track of the battery voltage and wind turbine output voltage. Also my electric shaver and battery charger are plugged into the inverter and running off of 120V AC. Later I plugged a long extension cord into the inverter and stretched it back to my camp site. I know this setup is really messy, but I was in a hurry to get up and running to take advantage of the wind once it started blowing. That's my excuse, and I'm sticking to it.

Closeup of the electronics This photo is a closeup of the electronics. The meter shows that the wind turbine is producing 13.32 Volts. My electric shaver and battery charger are providing loads on the system through the AC inverter.

The meter shows 13.49 volts Here the meter shows the turbine producing 13.49 volts. The voltage from the turbine goes up only a little as the wind speed increases once it has a load to power. Once the wind starts blowing, the turbine head snaps around into it and begins spinning up. It spins up quickly until the output voltage exceeds the battery voltage plus the blocking diode drop (around 13.2 volts, depending on the state of the battery charge). it is really running without a load until that point. Once the that voltage is exceeded, the turbine suddenly has a load as it begins dumping power into the battery. Once under load, the rpms only slightly increase as the wind speed increases. More wind means more current into the battery which means more load on the generator. So the system is pretty much self-governing. I saw no signs of over-reving. Of course in storm-force winds, all bets are off. Switching the controller to dump power into the dummy load did a good job of braking the turbine and slowing it way down even in stronger gusts. Actually shorting the turbine output is an even better brake. It brings the turbine to a halt right now, even in strong winds. Shorting the output is how I made the turbine safe to raise and lower, so I wouldn't get sliced and diced by the spinning blades. Warning though, the whole head assembly can still swing around and crack you hard on the noggin if the wind changes direction while you are working on these things. So be careful out there.

The controller electronics all wired up Eventually I decided my setup was too messy and dangerous. Having high current electrical connections and a rat's nest of wires on an Aluminum table wasn't smart. The danger of a spectacular short circuit was too high, so I neatened things up. I set all the electronics on a piece of plywood on top of a plastic storage bin and neatened up the wiring. Then I ran a long extension cord from the inverter back to my camp site and plugged all my stuff into it there.

The fully assembled wind turbine Here is a longer view of the complete setup.

My laptop computer powered by the wind turbine How sweet it is! I have electricity! Here I have my laptop computer set up and plugged into the power provided by the inverter, which in turn is powered by the wind turbine. I normally only have about two hours of battery life on my laptop. So I don't get to use it much while I'm camping. It comes in handy though for downloading photos out of my camera when its memory card gets full, making notes on projects like this one, working on the next great American novel, or just watching DVD movies. Now I have no battery life problems, at least as long as the wind blows. Besides the laptop, I can also now recharge all my other battery powered equipment like my cell phone, my camera, my electric shaver, my air mattress pump, etc. Life used to get real primitive on previous camping trips when the batteries in all my electronic stuff ran down.

So how much did all this cost to build? Well, I saved all the receipts for everything I bought related to this project.

Part Origin Cost



Motor/Generator Ebay




$26.00
Misc. pipe fittings Homecenter Store $41.49
Pipe for blades Homecenter Store $12.84
Misc hardware Homecenter Store $8.00
Conduit Homecenter Store $19.95
Wood & Aluminum Scrap Pile $0.00
Power Cable Old extension cord $0.00
Rope & Turnbuckles Homecenter Store $18.47
Electronic Parts Already on hand $0.00
Relay Auto Parts Store $13.87
Battery Borrowed from my UPS   $0.00
Inverter Already on hand $0.00
Paint Already on hand $0.00



Total
$140.62
Not too bad. I doubt I could buy a commercially made turbine with a comparable power output, plus a commercially made charge controller, plus a commercially made tower for less than $750-$1000.
Future modifications and enhancements I would like to make to the system include:

  • Mount the electronics in a weather-proof enclosure.
  • Add meters to monitor battery voltage and charge/discharge current.
  • Add a tachometer so I know how fast it is spinning.
  • Add more batteries to increase reserve storage capacity.
  • Add a second wind turbine or solar panels to increase power production.
  • Get a higher Wattage inverter.
  • Some method to automatically furl or brake the unit in high winds.
  • A concrete foundation for the tower.
  • A taller tower with steel stakes and steel guy wires.
Most of these modifications won't be made until I am living on the site permanently, or semi-permanently. One modification I am going to work on completing in the next few months before my next trip out there is the weather-proof enclosure and probably adding the meters.
As the project evolves in the future, I'll post updates here.
UPDATE 03/19/07

This web site has become very popular. Thank you all for your interest and encouragement. I am getting tons of email questions from people about all sorts wind power related (and not so related) issues. Many are the same few questions asked over and over again. Unfortunately I simply don't have the time to answer them all. I do try to read them all, but my busy schedule simply doesn't allow enough time to respond to most of them. So don't take it personally if you don't get a response. I'll instead post responses to the most commonly asked questions here as time allows.

Question #1: How do you prevent the power cable coming down the inside of the tower from winding up over time?
Answer: This is by far the most asked question I get from people. The short answer is I don't do anything to prevent it. The cable really doesn't wind up all that badly. The wind is as liable to spin the turbine head around one way as it is the other. So there is no real tendency for the cable to wind up badly. If it does wind up over time, it is no big deal to simply disconnect the wires at the bottom and manually unwind it. I have an idea for a fairly easy to build slip-ring system that would prevent any possibility of winding up the cable. At present though, there is little need to actually try implementing it. Maybe I'll try it out on a future turbine.

Update: Here is a video explaining the wire twisting issue.

Question #2: Can you help me design/build a wind power system that will power my whole home/farm so I can get out from under the thumb of my evil electric utility company?
Answer: The short answer is no. Not just due to time constraints, but also because my system isn't designed to produce enough electricity to power an entire home or farm. My system was just designed to provide a couple of hundred Watts tops in an area where no other electric options were available. I am working on design and construction of other wind turbines and even solar panels to increase my power production beyond the current minimal level. However, even if successful, these new additions would still not power a typical home or farm. My ultimate goal is to have enough power from wind and solar sources to power a small cabin and observatory on my remote property that will only be occupied occasionally and won't have much need for electricity. If you need a bigger system, then you need someone with experience with bigger systems to help you out.
Question #3: What are you working on now?
Answer: As time permits I am reworking the charge controller. It is going to be mounted in a weather-proof case with automotive-style voltage and amp meters installed on it. I have all the parts I need, but time to work on it is lacking. I am also working on a new design for the turbine head that will automatically turn out of the wind if it gets too strong so as to prevent over-speed damage. I have also started work on building a solar panel out of cheaply acquired solar cell seconds (from Ebay ) and commonly available construction materials. Once there is any progress on that project, I'll post it to the web site, but probably in its own section, rather than here on the wind turbine page.
UPDATE 05/17/07

Me setting up the wind turbine Here is a photo of me setting up the wind turbine on my remote property during our May 2007 trip to Arizona. I had left most of the equipment on-site in Arizona. I only brought the turbine head and charge controller back home with me. Everything weathered the winter ok. Just some slight surface rust on parts of the tower base. Everything went back together quickly and worked great.

My popup trailer set up in Arizona I used the wind turbine to power my new popup trailer on my spring vacation. The strong spring winds kept the wind turbine spinning all day every day and most of the nights too while I was in Arizona. The turbine provided enough power for the interior 12V lighting and enough 120V AC at the power outlets to keep my battery charger, electric shaver, and mini vacuum cleaner (camping is messy) all charged up and running. My girlfriend complained about it not having enough power to run her blow-dryer though.

Meter showing 14.5 Volts Here my volt meter is showing the turbine producing 14.5 volts in a stiff wind. Although the wind turbine powered the popup fairly well, I think there is room for improvement. I was powering the popup with 120 Volts AC via my inverter. The popup has its own 120V AC to 12V DC power supply for powering the interior lighting and other 12V accessories. The losses involved in converting power to 120V AC and then back to 12V DC probably heavily contributed to the battery running down fairly quickly a couple of times during periods of light wind. Powering the 12V systems directly from the battery would probably work better. The only downside I see is that the DC voltage won't be regulated and could swing a couple of volts up or down with changes in wind speed. That wouldn't bother most kinds of lighting too much. Other devices could have a problem with it though.

The wind turbine spinning away This photo shows the turbine spinning away and cranking out the power. I haven't had the time to complete the rebuild of the charge controller in a weather-proof enclosure. So this time I just put all the electronics in a plastic bin to protect them from the elements. Good thing too, since it rained several times while we were there this time. The jug of lamp oil is on top of the bin to prevent the wind from ripping the lid off.

UPDATE 01/3/08

I have completed my first home-built solar panel. It will be used in addition to the wind turbine to produce more power on my remote Arizona land.
UPDATE 05/20/08

The new and improved charge controller I have completed the rebuild of the charge controller. It is now in a semi-weatherproof enclosure and I have added a built in voltage meter. I have also added a few new features. The unit now has provisions for power inputs from multiple sources. It also has built-in fused 12V power distribution for three external loads.

The input side of the charge controller This photo shows the inputs to the charge controller. It has provisions for 3 inputs. One for my wind turbine and two for solar panels, though I only have one solar panel complete at this time.

The output side of the charge controller This photo shows the outputs from the charge controller. There are connections to the battery bank(s), dummy load, and three fused external 12V loads.

A look inside the charge controller This photo shows the inside of the charge controller. I basically just transferred everything that I originally had bolted onto the plywood board in the prototype into this box. I added an automotive illuminated voltage gage and fuses for 3 external 12V loads. I used heavy gage wire to try to reduce losses due to wire resistance. Every watt counts when you are living off-grid.

A block diagram of the complete system This is the schematic for the new charge controller. It is pretty much the same as the old one above, except for the addition of the Volt meter and extra fuse blocks for the external loads. Click on it for a larger version.

A block diagram of the complete system This is a block diagram of the whole power system. click on it for a larger version. Note that I only have one solar panel built right now. I just haven't had the time to complete the second one. Please visit my home-built solar panel page.

UPDATE 07/18/08

Wind turbine and solar panel working together Once again I stayed on my remote property during my recent vacation in Arizona. This time I had both my home-built wind turbine and my home-built solar panel with me. Working together, they provided plenty of power for my (admittedly minimal) electricity needs.

My home-built solar panel Here is a close-up of the solar panel. A write-up on how I built it can be found here. I have to move it several times each day to keep it pointed at the sun, but that isn't really a big hardship. Maybe someday I will build a tracking system to automatically keep it aimed at the sun.

A home-made folding 15 Watt solar panel I have finally completed my second home-built solar panel. This is a smaller 15 Watt panel. It folds up for easier storage and transportation. Click the photo to learn more about it.

The new charge controller in action Here is a photo of the new charge controller unit. The wires on the left side are coming from the wind turbine and solar panel. The wires on the right side are going to the battery bank and dummy load. I cut up an old heavy-duty 100 ft. extension cord to make cables to connect wind turbine and solar panel to the charge controller. The cable to the wind turbine is about 75 feet long and the cable to the solar panel is about 25 feet long. The battery bank I am currently using consists of 11 sealed lead-acid 12V batteries of 8 Amp-Hour capacity connected in parallel. That gives me 88 Amp-Hours of storage capacity, which is plenty for camping. As long as it is sunny and windy, (nearly every day is sunny and windy on my property), the wind turbine and solar panel keep the batteries well charged.

The wind turbine broken after a wind storm Disaster! I went into town to pick up some supplies. While I was gone, a wind storm came up. Winds well in excess of 50 MPH blew through my area. When I returned I found the turbine in this condition. Two blades had snapped off, and the third was cracked, but still attached. The blades broke where the mounting tab met the body of the blade. I knew this was a weak spot and always expected they would break there eventually. I don't know for sure if it was over-speed, or just fatigue from repeated flexing that caused them to break. I suspect fatigue though. I could see the blades flexing in strong winds before they broke. Interestingly though, I found that the battery bank was fully charged. The wind turbine must have generated some serious power in those high winds before it failed.

I knew I could get the wind turbine up and running again if I could just drill new mounting holes in the blades. I had no drill or drill bits with me though. I had to think about it for a while before I figured out how to do it. Then, the spirit of MacGyver came over me, and I knew just how to do it.
Heating up a screwdriver over a charcoal fire I figured out that if I heated my largest Phillips screwdriver over a fire, it would melt a hole in the PVC blades just the right size for the mounting bolts. So I got some charcoal going and started making holes. It's a terrible abuse of a perfectly good screwdriver, but it was an emergency situation after all.

Melting new holes in the blades I used one of the broken mounting tabs as a template to locate where to make the holes in the bases of the blades. Then it was straightforward to just melt through the blades with the screwdriver. It was very quick and easy, and the holes were very clean.

The broken tabs became spacers for re-mounting the blades I then re-mounted the blades on the hub of the turbine. I used the broken mounting tabs as spacers under the blades to prevent them from fouling the heads of the bolts that hold the hub together. The tabless blades are much stronger and less likely to flex in strong winds. I should have done it this way in the beginning. Live and learn.

The repaired wind turbine Here is the turbine all re-assembled and ready to go back up on the tower.

The repaired wind turbine up and running again Here is the wind turbine up and flying again. The loss of two inches of blade length doesn't seem to have adversely impacted the performance of the turbine. It still works great. Not bad for an improvised repair job.





No hay comentarios:

Publicar un comentario en la entrada
